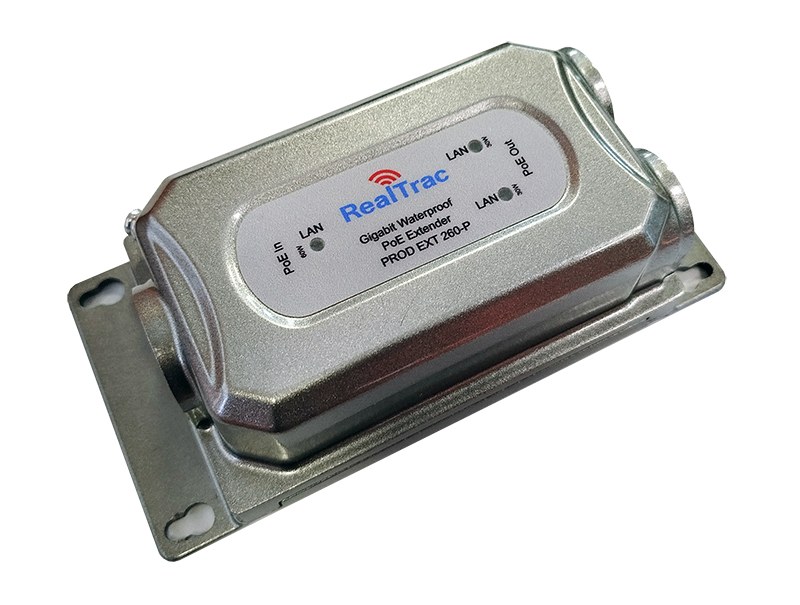

PROD EXT 260-P
The PROD EXT 260-P outdoor PoE extender transmits data and power to two devices under the PoE 802.3at standard at up to 30 W. The extender itself receives data and power through a single gigabit PoE 802.3bt port (60 W).
Capabilities
- Input: 1 × 1000 Mbps PoE 802.3bt port, 60 W
- Output: 2 × 1000 Mbps PoE 802.3at ports, up to 30 W
- Wide operating temperature range: −40 to +80 °C
- Aluminum enclosure with IP68 and IK10 protection
- Industrial protection level 4 (ESD, RS, EFT, CS)
- Quick installation
Technical specifications
| Parameter | Value |
| Interfaces | 3 × 10/100/1000Base-T ports |
| PoE input | 802.3bt, 60 W |
| PoE output | 2 × 802.3at, up to 30 W |
| Switching method | Store-and-forward |
| Functions | MAC address auto-learning and aging; IEEE 802.3x flow control in full duplex; backpressure in half duplex |
| Indicators | Power, PoE |
| Enclosure protection | IP68, IK10 |
| Enclosure material | Aluminum |
| Operating temperature | −40 to +80 °C |
| Dimensions | 150 × 73 × 44 mm |
Package contents
- PROD EXT 260-P — 1 pc.
- Cable gland — 3 pcs.
- Warranty card — 1 pc.
- Quick start guide — 1 pc.
