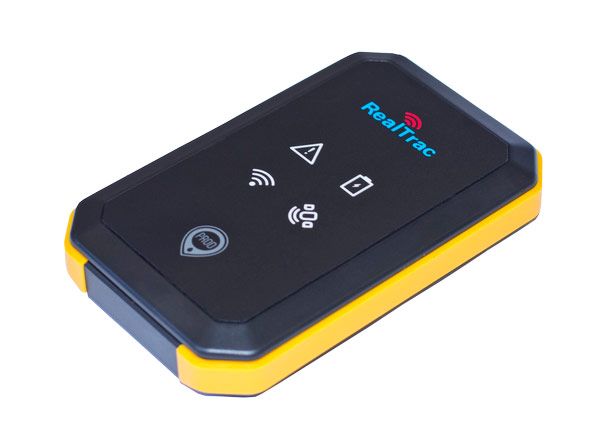

PROD TAG 720
The PROD TAG 720 personal tag is a personal device that is part of the RealTrac positioning system, which locates employees in real time using GPS, GLONASS and other systems.
The device is equipped with a LoRa module and is designed to exchange tag location data, receive notifications and send alarm messages to the RealTrac system server.
The tag locates the object using global navigation satellite systems. Its coordinates are sent to the RealTrac system server, which displays the tag on the map in the RealTrac client software.
The personal tag supports the RealTrac Collision Avoidance System (CAS).
| Parameter | Value |
| Positioning type | Hybrid: global navigation satellite systems, zonal positioning, precise positioning, CAS |
| Supported positioning systems | GPS, GLONASS, RTLS |
| Radio frequencies | 865, 868 MHz (Band 18), 2.4 GHz, 3.8–7.2 GHz |
| Data transmission technology | LoRa (Long Range) |
| Boot time, s | up to 25 |
| Transmitter power | LoRa 20 dBm UWB -41.3 dBm/MHz Wi-Fi 14.5 dBm BLE 4 dBm |
| Buttons | 2 pcs. #1: Alarm #2: Configurable |
| Antenna | Built-in |
| Enclosure protection class | IP67 |
| Operating mode | Continuous |
| Operating temperature, °C | -40 to +45 °C at 85% relative humidity |
| Dimensions, mm | 126 × 79 × 20 |
| Weight, kg | 0.17 |
| Power source | Built-in rechargeable battery |
| Charging type | Wireless |
| Operating time, h | at least 14 |
| Charging time, h | no more than 6 |
Supported LoRa base stations:
- Kerlink Wirnet iFemtoCell
- Kerlink Wirnet iBTS
Supported RealTrac CAS equipment:
- PROD CAS 1500
- PROD CAS 1600
- PROD CAS 1700
