PROD VTAG 100

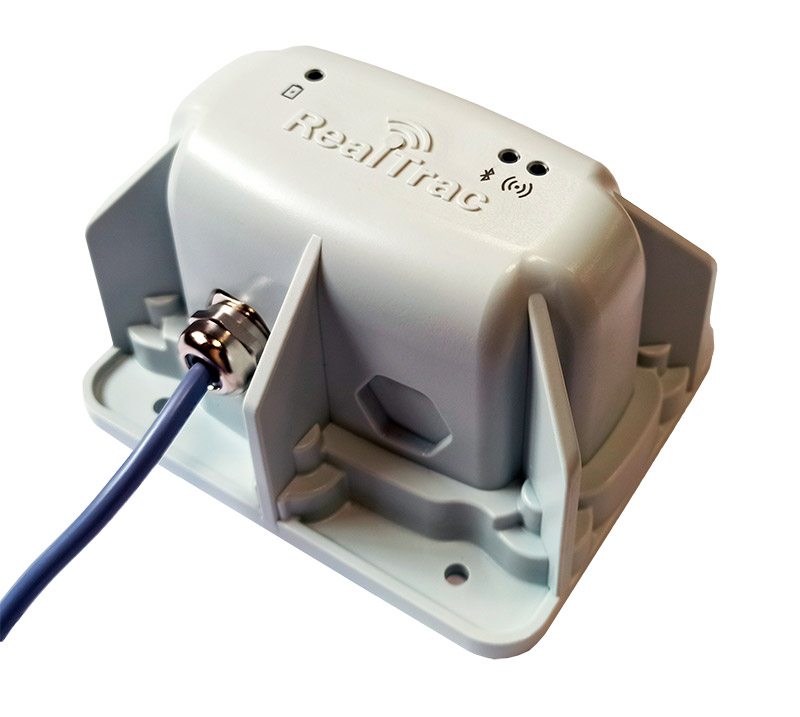

PROD VTAG 100 is a vehicle tag that is part of the RealTrac Positioning (RTLS) unified information and management system and is designed for zonal location of vehicles in a monitored area using BLE technology.

Small size, minimalist design and IP67 dust and water protection make the PROD VTAG 100 vehicle tag an optimal and efficient solution for indoor vehicle positioning systems.

A special feature of the tag is a CAN interface for connection to the vehicle's on-board power supply.

PROD VTAG 100 capabilities

Applications of the vehicle tag:

• Mining
• Industrial plants
• Construction sites
• Logistics centers and seaports

BLE technology makes it possible to locate vehicles equipped with the zonal positioning vehicle tag with an accuracy of up to 20 meters. This helps optimize production and business processes and record presence in various zones, time spent in each zone, the route of movement across the site and other parameters.

The vehicle tag has a battery that powers it when the vehicle's on-board power is not available. The IP67 enclosure rating allows the tag to be used at industrial and mining enterprises.

Technical specifications

Modifications

A version with magnetic mounts for temporary installation on a vehicle, powered by the tag's own battery.

Supported RealTrac Positioning (RTLS) access points

• PROD POINT 510
• PROD POINT 511
• PROD POINT 512
• PROD POINT 515
• PROD POINT 516
• PROD POINT 517
