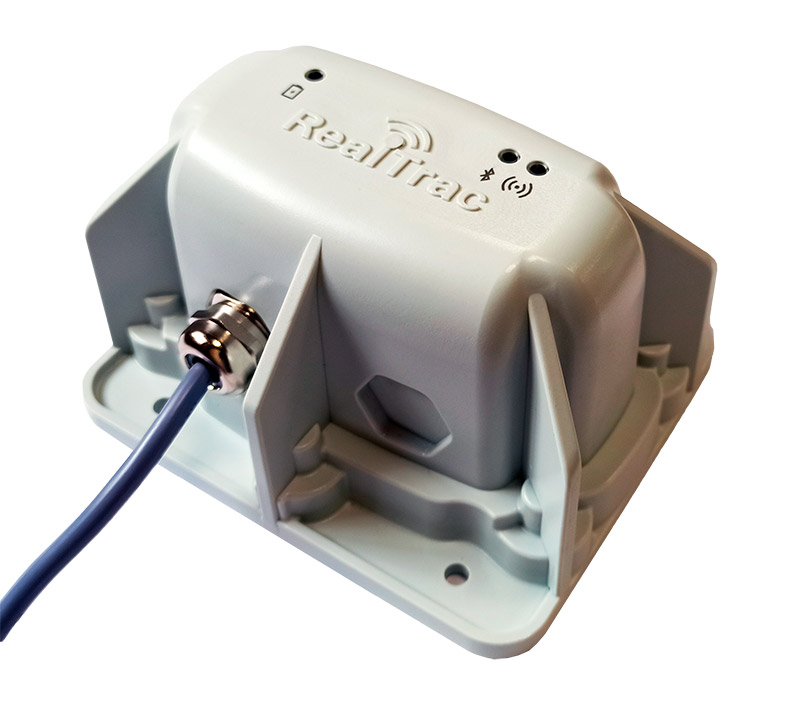

PROD VTAG 200
PROD VTAG 200 is a vehicle tag that is part of the unified RealTrac Positioning (RTLS) information and management system. It is designed for precise location of vehicles within a monitored area using UWB technology.
Its compact size, clean design and IP69 dust and water protection make the PROD VTAG 200 vehicle tag an optimal and efficient solution for indoor vehicle positioning systems.
A key feature of the tag is its CAN interface for connection to the vehicle's on-board power supply.
PROD VTAG 200 capabilities
Areas of application of the vehicle tag:
- Mining
- Industrial plants
- Construction sites
- Logistics centers and seaports
UWB technology makes it possible to locate vehicles fitted with the precise positioning vehicle tag with an accuracy of up to 1 m. This helps optimize production and business processes and record presence in different zones, the time spent in each zone, the route traveled across the site and other parameters.
The vehicle tag has a built-in battery that powers it when no on-board power is available. The IP69 enclosure rating allows the tag to be used even in industrial and mining environments.
Technical specifications
| Parameter | Value |
| Device type | Vehicle tag |
| Positioning type | Zonal, precise, CAS |
| Supported devices | CAS1500, CAS1600, PP510-512, PP515-517 |
| Radio interfaces | |
| Radio standard | IEEE 802.15.1, IEEE 802.15.4c |
| Operating frequency range | 868 MHz, 915–923 MHz, 2.4 GHz, 3.8–7 GHz |
| Transmitter power | ISM 20 dBm UWB −41.3 dBm/MHz BLE 20 dBm |
| Antenna | Internal (UHF, BLE, UWB) |
| Operating mode | Continuous |
| Supply voltage, V | DC 8–30 |
| Power consumption, W | Up to 3 |
| Power source | Vehicle on-board power, battery |
| Operating temperature range at relative humidity | −40 to +45 °C at 85% relative humidity |
| Enclosure material | Polymer |
| Enclosure protection rating | IP69 |
| Dimensions, mm | 164 × 149 × 76 |
| Weight, kg | 0.7 |
Modifications
PROD VTAG 201 is a vehicle tag with magnetic mounts for temporary installation on a vehicle, powered by the tag's own battery.
Supported vehicle equipment for RealTrac Collision Avoidance System (CAS)
- PROD CAS 1500
- PROD CAS 1600
Supported RealTrac Positioning (RTLS) access points
- PROD POINT 510
- PROD POINT 511
- PROD POINT 512
- PROD POINT 515
- PROD POINT 516
- PROD POINT 517
