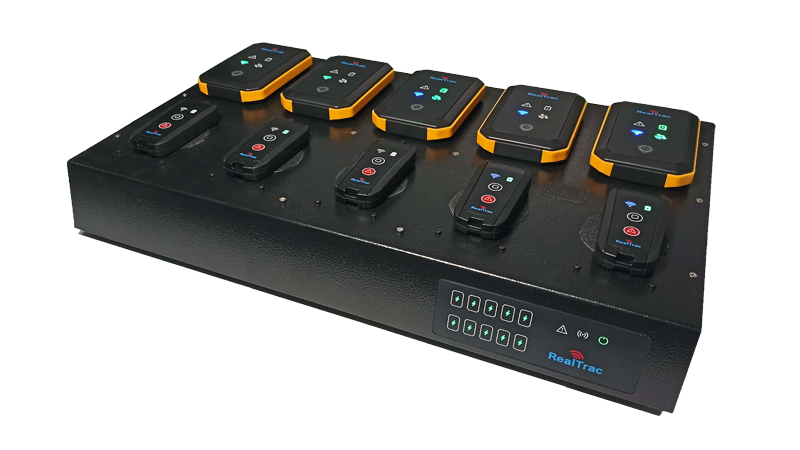

BASE TCD 610 — wireless charging desk for personal tags

BASE TCD 610 is a charging desk for wireless charging of personal tags of the RealTrac Positioning (RTLS) system.

The tags have an IP67-rated enclosure, which rules out connectors for wired charging on the housing. Wireless charging solves this problem.

The BASE TCD 610 charging desk also offers a number of advantages:

No wires. Charging a tag requires no connecting cables between the tag and the charging desk
Easy charging. Simply place the tag on the charging pad
Tracks and logs are transferred from the tag to the server during charging
Charging progress indication
Personal tag battery testing during charging
Additional cooling to lower the battery temperature during charging

Specifications

Parameter	Value
Supply voltage, V	AC 220
Power consumption, W	up to 120
Operating temperature range, °C, at relative humidity, %	0 to +70 °C at 20–90% humidity
Enclosure material	Plastic / aluminum
Ingress protection	IP30
Dimensions, mm	327 × 529 × 60
Weight, kg	5

Supported personal tags:

PROD TAG 210
