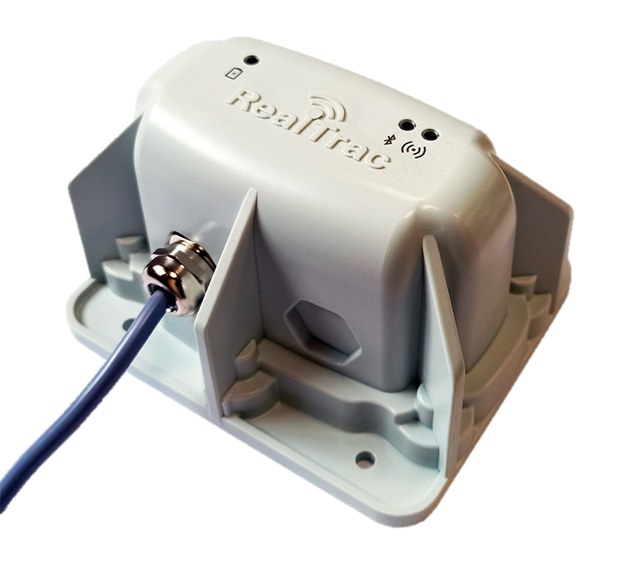

PROD VTAG 730

The PROD VTAG 730 vehicle tag is installed on vehicles and determines their location in the RealTrac Positioning (RTLS) and RealTrac Collision Avoidance System (CAS) systems.

The tag combines BLE, UWB and GNSS technologies: indoors, vehicles are located to the zone or with an accuracy of 1 m; outdoors, with an accuracy of 3–5 m. Data is transmitted to the server once per second over LTE / pLTE, with LoRa as a backup channel.

Applications

• Open-pit mines, open-pit coal mines and other open-pit mining sites
• Warehouses and logistics centers
• Industrial enterprises

Capabilities

• Precise (up to 1 m) and zonal positioning of vehicles indoors
• Outdoor GNSS positioning with an accuracy of 3–5 m
• Data exchange with the server once per second over LTE / pLTE, LoRa backup channel with a range of up to 3 km
• RealTrac CAS support
• Powered by the 12–24 V on-board power supply and a built-in battery; temporary installation is possible
