RealTrac Collision Avoidance System


The RealTrac Collision Avoidance System product is designed in order to provide: dangerous proximity detection; issuing warning to the objects detected in such proximity; collision avoidance between vehicles or between vehicles and personnel.

The product has two monitor directions:

  1. Vehicle-vehicle proximity detection control
  2. Vehicle-human proximity detection control


Monitor directions

Vehicle-vehicle

  • Registers dangerous proximity
  • Issues a warning about a potential collision
  • Decreases downtimes caused by vehicle collisions
  • Ensures traffic safety in case of poor visibility

Vehicle-human

  • Detects a person on a vehicle’s path of motion
  • Issues a warning about a person located in hazardous area
  • Decreases industrial injuries caused by collisions between vehicles and personnel


Dangerous proximity control zones

After RealTrac Collision Avoidance equipment is installed on a vehicle or machinery ­ -  3 control zones are shaped around it.

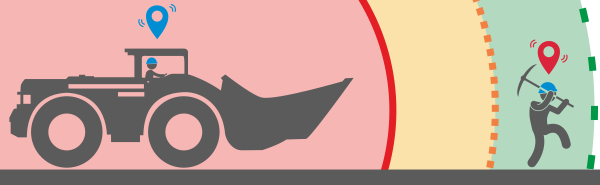

The RealTrac Collision Avoidance – Attention Zone

Attention Zone

Issues a warning to personnel about vehicles, equipment, etc. detected in close range.

Detects potential dangerous proximity and draws personnel’s attention to proximity to the other object.

  • Light indication
    • Dashboard indication in a vehicle
    • LED signal on a personal tag
  • Sound indication
    • Repeating audio signal inside the cab
  • Vibration
    • Discrete vibration on a tag

The RealTrac Collision Avoidance – Danger Zone

Danger Zone

Provides dangerous proximity detection and attracts personnel’s attention, can slow down the speed of vehicles or equipment.

Issues warnings about possible accidents and draws personnel’s attention to a dangerous proximity to the other object.

  • Light indication
    • Dashboard indication in a vehicle
    • LED signal on a personal tag
    • Strobe light on the outside of a vehicle
    • Blinking yellow marker lights on a vehicle
  • Sound indication
    • Frequently repeating audio signal inside a vehicle
  • Vibration
    • Repeating vibration on a tag

The RealTrac Collision Avoidance – Emergency Zone

Emergency Zone

Generates alarm signal in case of emergency or extreme dangerous proximity, can stop vehicles or equipment.

  • Light indication
    • Emergency strobe lights on a vehicle
    • LED light on a personal tag
  • Sound indication
    • Car siren
    • Car horn
  • Vibration
    • Continuous vibration on a personal tag

It helps to create three necessary zones around a vehicle or any other piece of equipment that will issue a warning about dangerous proximity between vehicles and personnel.

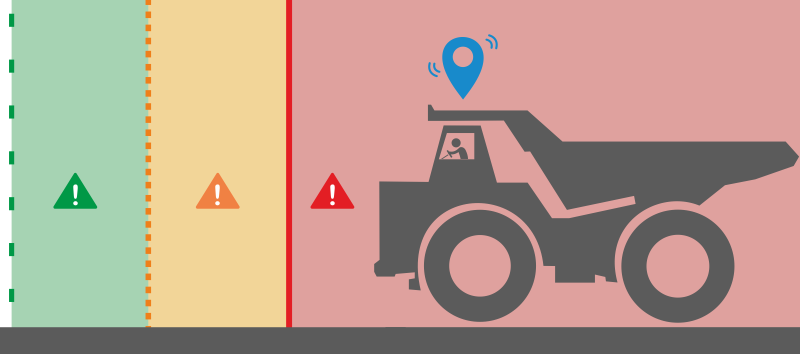

Control Zones side view

The RealTrac Collisiion Avoidance – Zones side view

The zones can be configured to detect other objects at various distances from a vehicle or machinery.

Control Zones top view

The RealTrac Collision Avoidance – Zones top view



The zones can have different shapes and be tailored to certain type of vehicles and the equipment installed.


The Key Feature of RealTrac Collision Avoidance



The 3 zone vehicle operator display for continuous visual assessment of the environment. This way it enables to detect any case of dangerous proximity with another object and take actions to prevent a collision or run over.

The display shows the system health and the buttons enable sending emergency notifications or confirming any action.

On the right you can see how an object enters and leaves different control zones

«Alert» zone

PROD CAS 1000 VOD «Alert» zone

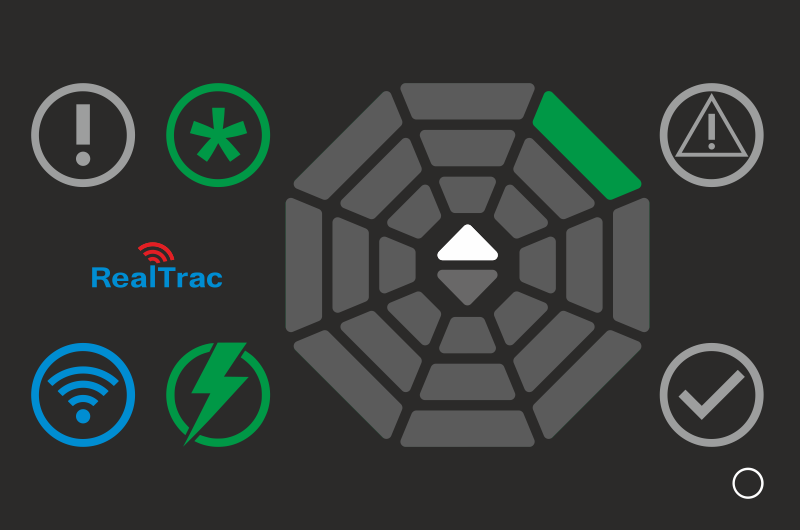

The other object is to the right of the vehicle along the path in «Alert» Zone.

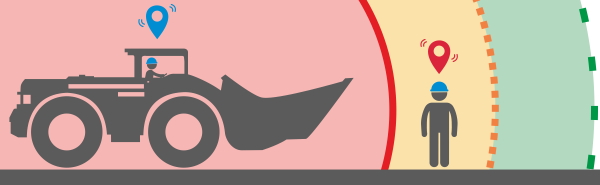

«Danger» zone

PROD CAS 1000 VOD «Danger» zone

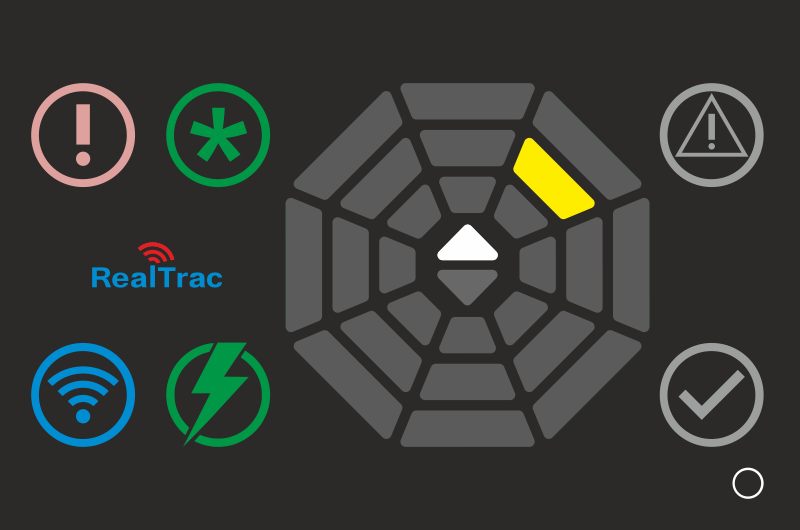

The object has approached the vehicle at a dangerous proximity and entered «Danger» zone. The sound notification is activated and the sign «Alert» on the display starts to blink rarely.

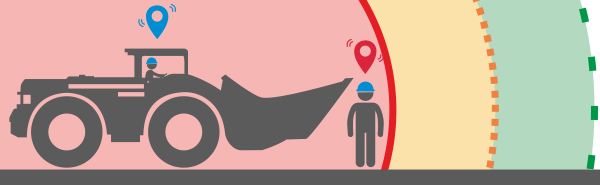

«Emergency» zone

PROD CAS 1000 VOD «Emergency» zone

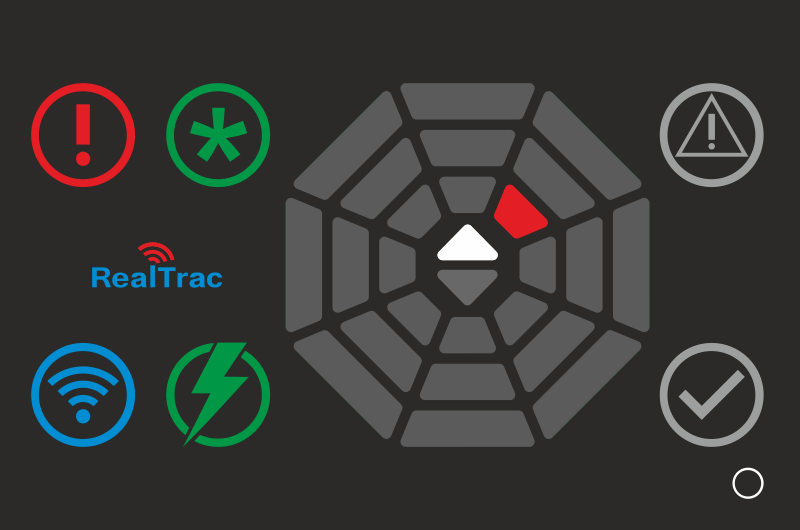

The object has come close to the vehicle at a dangerous distance, has entered the «Emergency» zone and a collision is possible. A permanent audible alarm is activated and the «Emergency» sign flashes frequently on the display.


Additionally, RealTrac Collision Avoidance System can be connected to the cap lamps, flashing beacons and equipment for sound notification. This way the system will notify the machinery and personnel about entering «Alert», «Danger» and «Emergency» zones.


Advantages of the product


Advantages of the RealTrac Collision Avoidance – Ingress Protection IP67

Operates in any weather conditions and aggressive environments

The product design is based on the equipment enhanced with IP65-67, that ensures its use in any weather conditions, aggressive labor environments with much dust and within wide operating temperature range.

No Internet or server connection is required

No Internet or server connection is required

The product detects dangerous proximity and issues warnings independently from server or Internet connection. It ensures its use in any conditions.

Alteration of control area radius

Dynamic zones: custom shape, size and position of control zones, depending on the situation

You can specify any shape, size and position of the zones, depending on the type of technology, operating conditions and industrial safety requirements. The control zones can also be changed when the driving direction is changed or the attachments or working tools are activated.


Possible applications of the RealTrac Collision Avoidance System




The RealTrac Collision Avoidance System Components


Equipment for employees and miners


BASE TAG 302 in the cap lamp

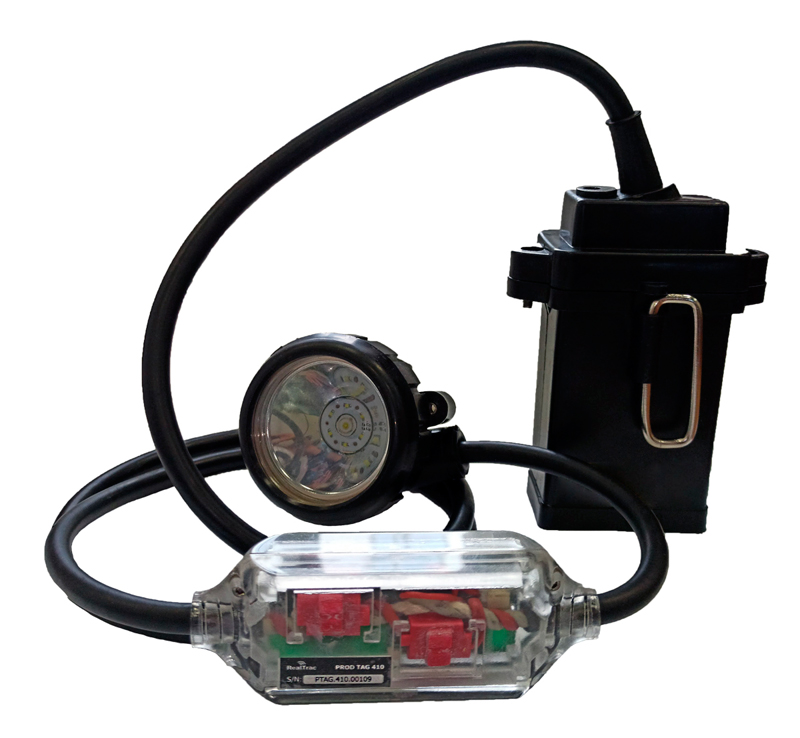

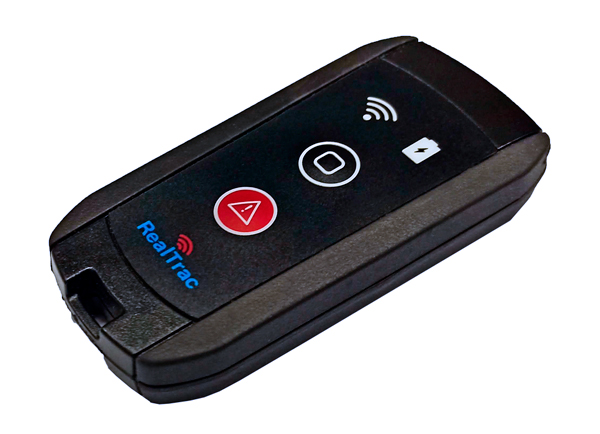

Personal tags (trackers) - are given to company employees to determine their positioning relative to the vehicle with the installed Collision Avoidance System VBUs. Personal tag can be embedded into a cap lamp or be designed as a portable device.


Equipment for vehicles


PROD CAS 1000 VODPROD CAS 1000 VOD

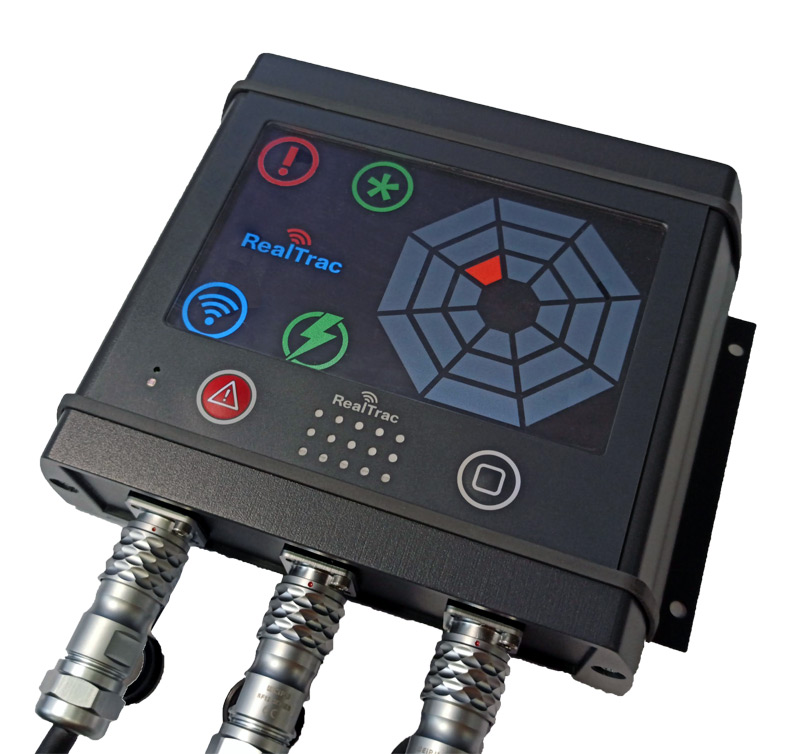

Vehicle Operator Display (VOD) - is installed in the driver's cabin and serves for visual assessment of the environment around the vehicle, receiving alerts about the dangerous proximity and monitoring the system state.

PROD CAS 1000 VCU - Vehicle Control Unit (VCU)

PROD CAS 1000 VCU

Vehicle Control Unit (VCU) - is installed on a vehicle and calculates the distance from the tag to the VBUs and the tag’s direction of movement. The VCU determines in which of the control zones the tag is located and, depending on this, displays the information about objects in different zones to the driver and activates light and graphic or audible alerts.

PROD CAS 1000 VBU - Vehicle Beacon Unit (VBU)

PROD CAS 1000 VBU

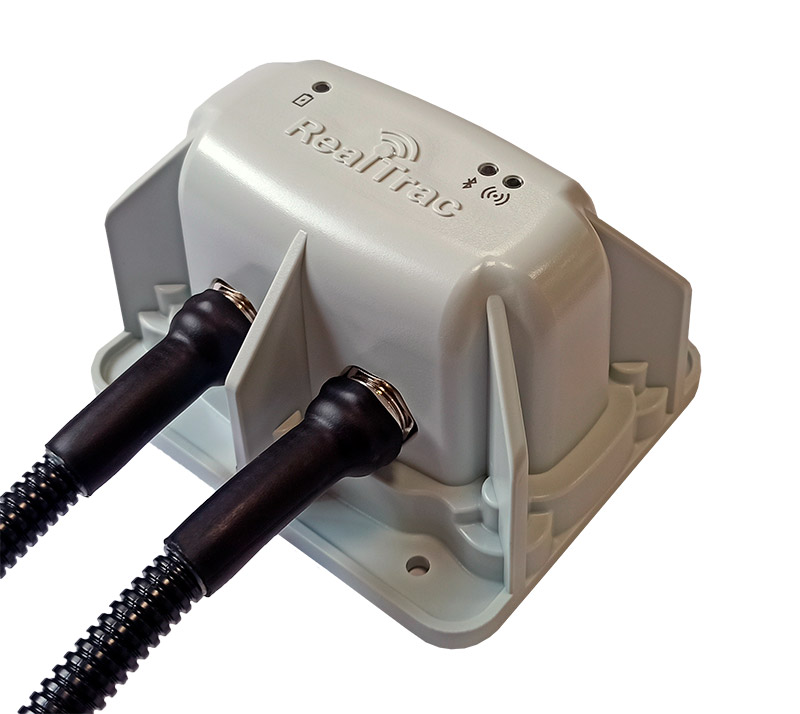

Vehicle Beacon Unit (VBU) – is utilized to detect other VBUs or personal tags (trackers). The number of VBUs installed on a vehicle depends on the size and configuration of the vehicle (usually 4-8 units).
